Welding Table Accessories
Positioning Squares & Rulers
Frame Your Projects with Confidence
Infinite Adjustability (Holes vs. Slots): Many of our 3D squares feature a combination of standard boreholes and elongated slots. This allows for precise micro-adjustments before locking the block down with a clamping bolt.
Multi-Functional Geometry: Use flat rules as straight backstops (fences), 3D squares for vertical 90-degree clamping, and T-squares for specialized structural node locating.

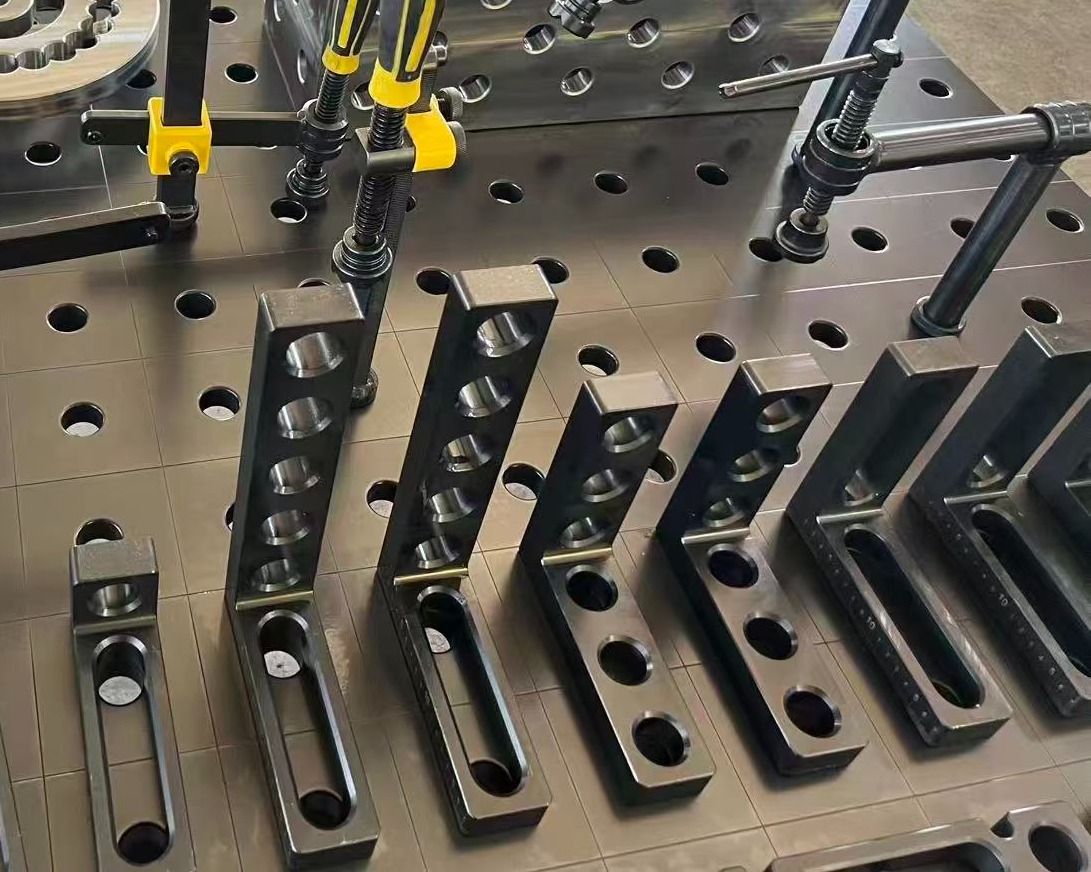

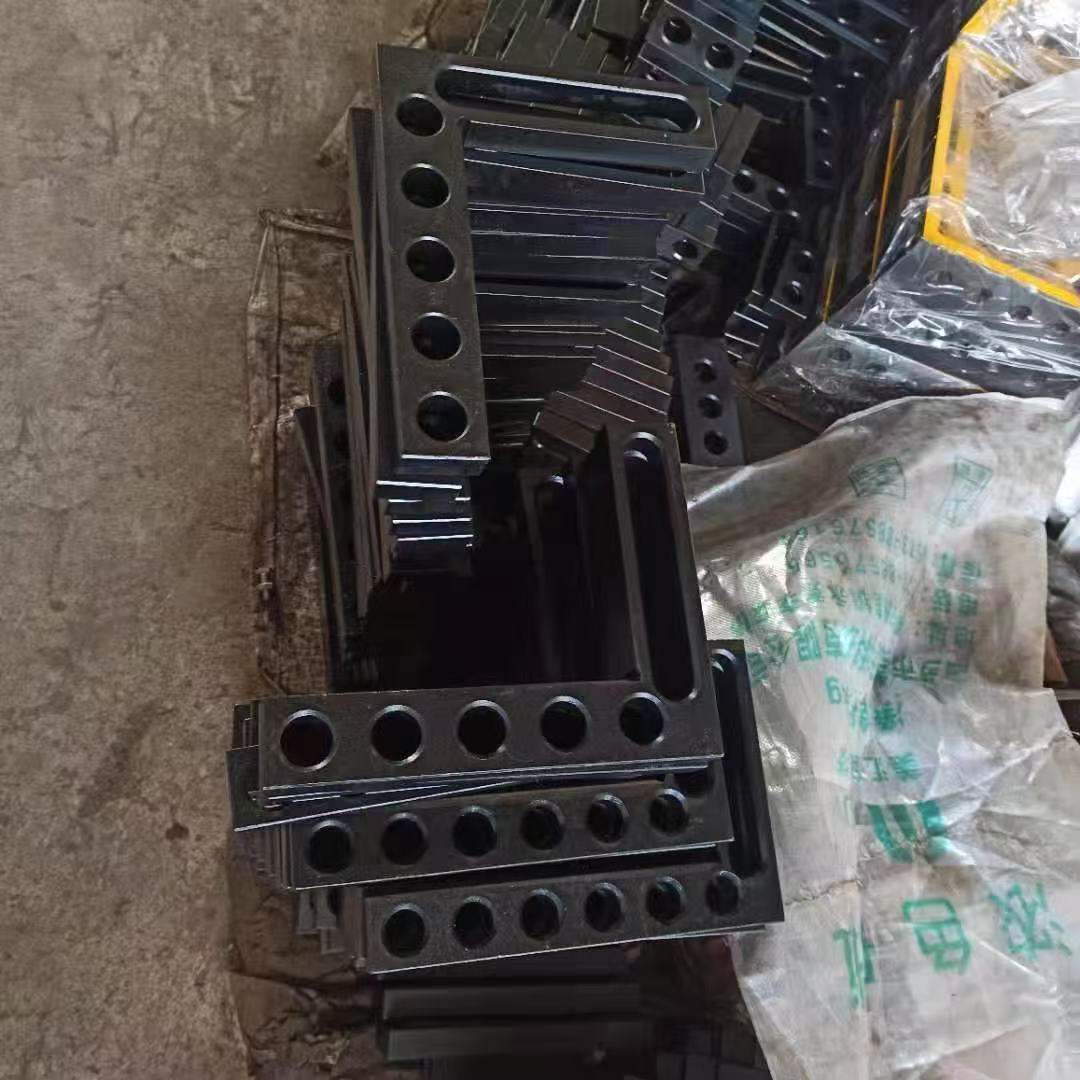

3D Positioning Squares / Locating Angles
| SerialNumber | Dimensions (L x W x H) | Hole System | Material | Surface Finish |
| KC-D28-LA-001 | 75 x 50 x 75 mm | D28 | HT300 Cast Iron / Q355 Steel | Standard / Plasma Nitrided |
| KC-D28-LA-002 | 175 x 50 x 75 mm | |||
| KC-D28-LA-003 | 175 x 50 x 175 mm | |||
| KC-D28-LA-004 | 175 x 50 x 275 mm | |||
| KC-D28-LA-005 | 175 x 50 x 300 mm | |||
| KC-D28-LA-006 | 225 x 50 x 200 mm |
| SerialNumber | Dimensions (L x W x H) | Hole System | Material | Surface Finish |
| KC-D16-LA-001 | 40 x 30 x 40 mm | D16 | HT300 Cast Iron / Q355 Steel | Standard / Plasma Nitrided |
| KC-D16-LA-002 | 90 x 30 x 40 mm | |||
| KC-D16-LA-003 | 90 x 30 x 90 mm | |||
| KC-D16-LA-004 | 90 x 30 x 140 mm | |||
| KC-D16-LA-005 | 90 x 40 x 40 mm |
Locating Rulers / Straight Edges
| SerialNumber | Dimensions (L x W x H) | Hole System | Material | Surface Finish |
| KC-D28-LR-001 | 100 x 50 x 25 mm | D28 | HT300 Cast Iron / Q355 Steel | Standard / Plasma Nitrided |
| KC-D28-LR-002 | 150 x 50 x 25 mm | |||
| KC-D28-LR-003 | 225 x 50 x 25 mm | |||
| KC-D28-LR-004 | 300 x 50 x 25 mm | |||
| KC-D28-LR-005 | 400 x 50 x 25 mm | |||
| KC-D28-LR-006 | 1000 x 100 x 25 mm |
| SerialNumber | Dimensions (L x W x H) | Hole System | Material | Surface Finish |
| KC-D16-LR-001 | 50 x 30 x 12 mm | D16 | HT300 Cast Iron / Q355 Steel | Standard / Plasma Nitrided |
| KC-D16-LR-002 | 90 x 30 x 12 mm | |||
| KC-D16-LR-003 | 115 x 30 x 12 mm | |||
| KC-D16-LR-004 | 190 x 30 x 12 mm | |||
| KC-D16-LR-005 | 240 x 50 x 12 mm | |||
| KC-D16-LR-006 | 400 x 50 x 12 mm |

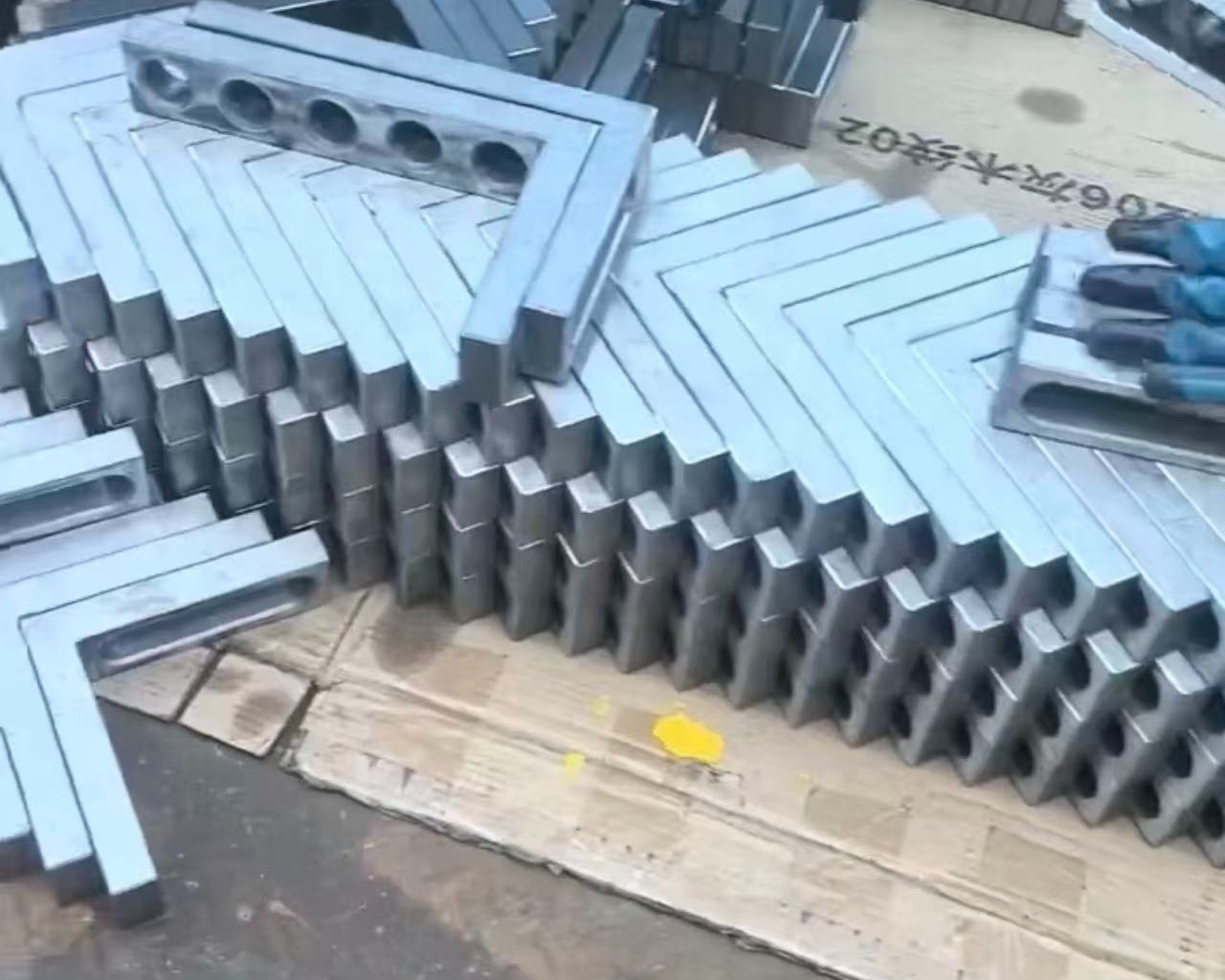

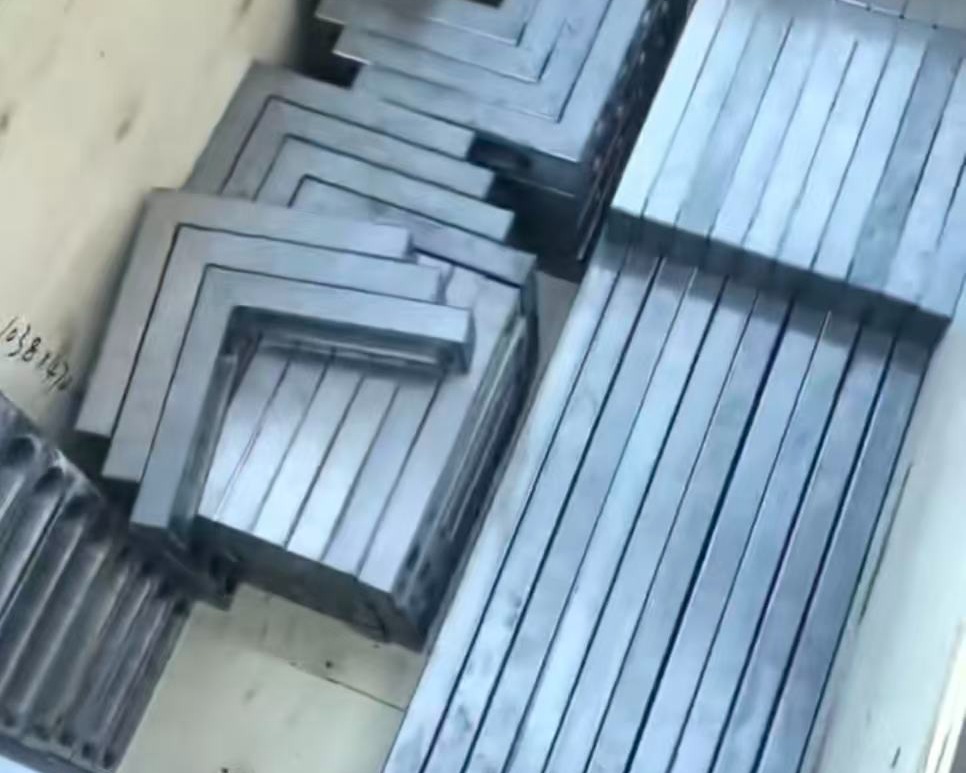

Flat Squares & T-Shape Squares
| SerialNumber | Dimensions (L x W x H) | Hole System | Material | Surface Finish |
| KC-D28-LS-001 | 175 x 200 x 25 mm | D28 | HT300 Cast Iron / Q355 Steel | Standard / Plasma Nitrided |
| KC-D28-LS-002 | 225 x 250 x 25 mm | |||
| KC-D28-LS-003 | 225 x 350 x 25 mm | |||
| KC-D28-LS-004 | 375 x 500 x 25 mm | |||
| KC-D28-TS-005 | 250 x 200 x 25 mm |
| SerialNumber | Dimensions (L x W x H) | Hole System | Material | Surface Finish |
| KC-D16-LS-001 | 105 x 105 x 12 mm | D16 | HT300 Cast Iron / Q355 Steel | Standard / Plasma Nitrided |
| KC-D16-LS-002 | 130 x 130 x 12 mm | |||
| KC-D16-LS-003 | 155 x 180 x 12 mm | |||
| KC-D16-LS-004 | 200 x 275 x 12 mm | |||
| KC-D16-TS-005 | 125 x 100 x 12 mm |
Building Your Base Frame
Create a Solid Fence: Use two Fast Clamping Bolts to secure a 1000mm Flat Locating Rule across your table. This creates an immovable X-axis straight edge to push your main structural beams against.
The Perfect Corner: Place a Flat Square at the corner intersection of two beams. Clamp the beams directly into the square to guarantee a perfect 90° joint before applying your tack welds.
Vertical Support: Use a slotted 3D Positioning Square to hold up a vertical post. Slide the square along the slot to achieve the exact millimeter placement before fully tightening the bolt.
