Fast Clamping Bolts & Quick Release Locking Pins

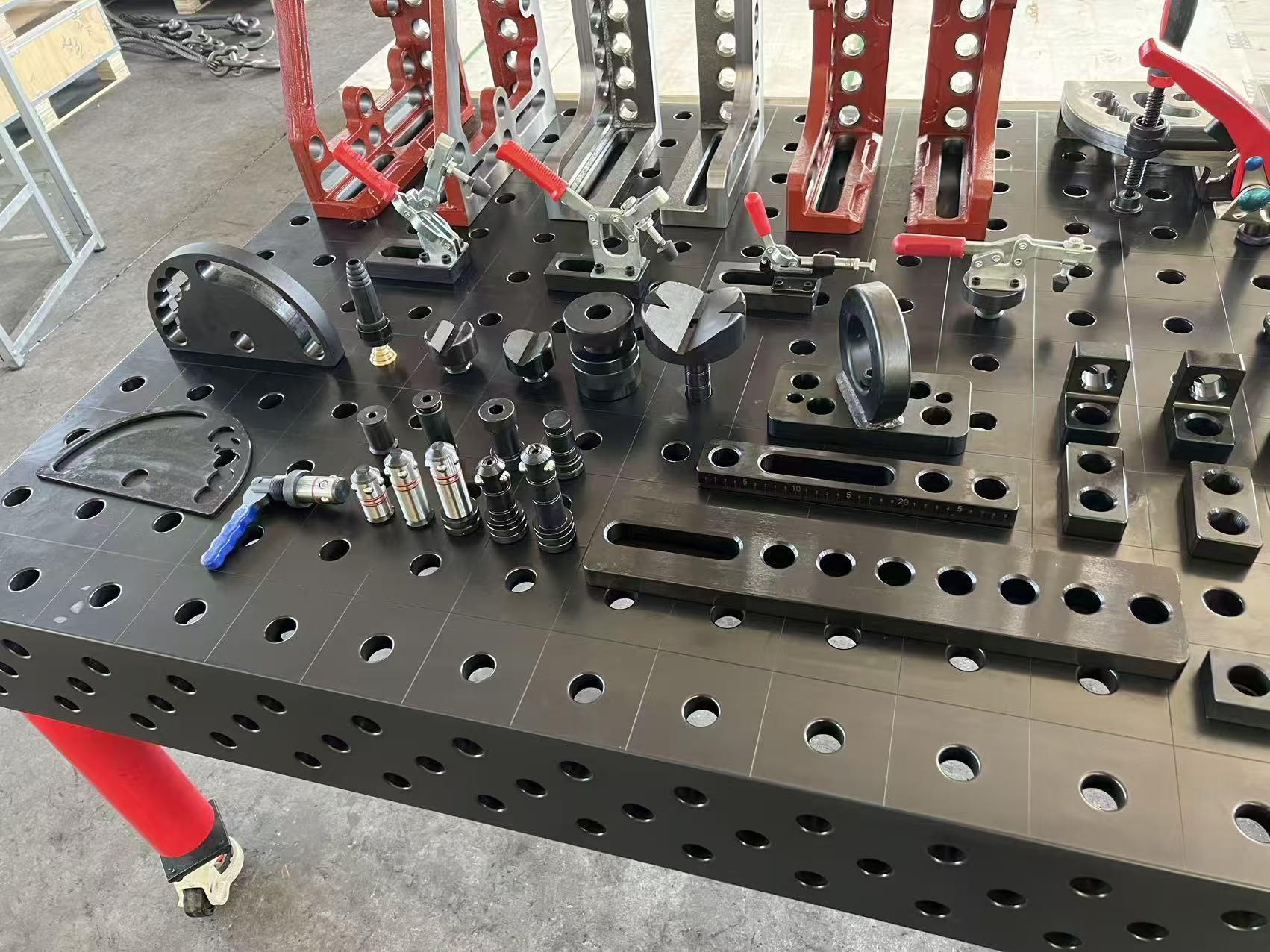

The Ultimate Fastening Solution for Modular Tables

• Rapid 5-Ball Locking Mechanism: Simply insert the clamping bolt into the table hole and turn the ergonomic knurled handle (or tighten the hex drive). The internal steel balls expand outward against the chamfered hole, creating an unbreakable, perfectly centered lock in seconds.

• Exceptional Clamping Force: Manufactured from high-strength tempered steel, our bolts withstand extreme shearing forces and provide massive pull-out resistance, ensuring your positioning squares and heavy workpieces remain immovable.

• A Specialized Bolt for Every Setup:

• Standard Fast Clamping Bolts: The go-to choice with quick-turn handles for connecting standard stops and blocks.

• Countersunk Bolts (Flush Mount): Perfect for applications where the bolt head must sit completely flush with the table surface, preventing any interference with flat workpieces.

• Magnetic Pins: Designed for instant, temporary positioning of lightweight sheet metal before final clamping.

• Connecting Bolts: Ideal for permanent or heavy-duty setups where a hex wrench provides maximum tightening torque.

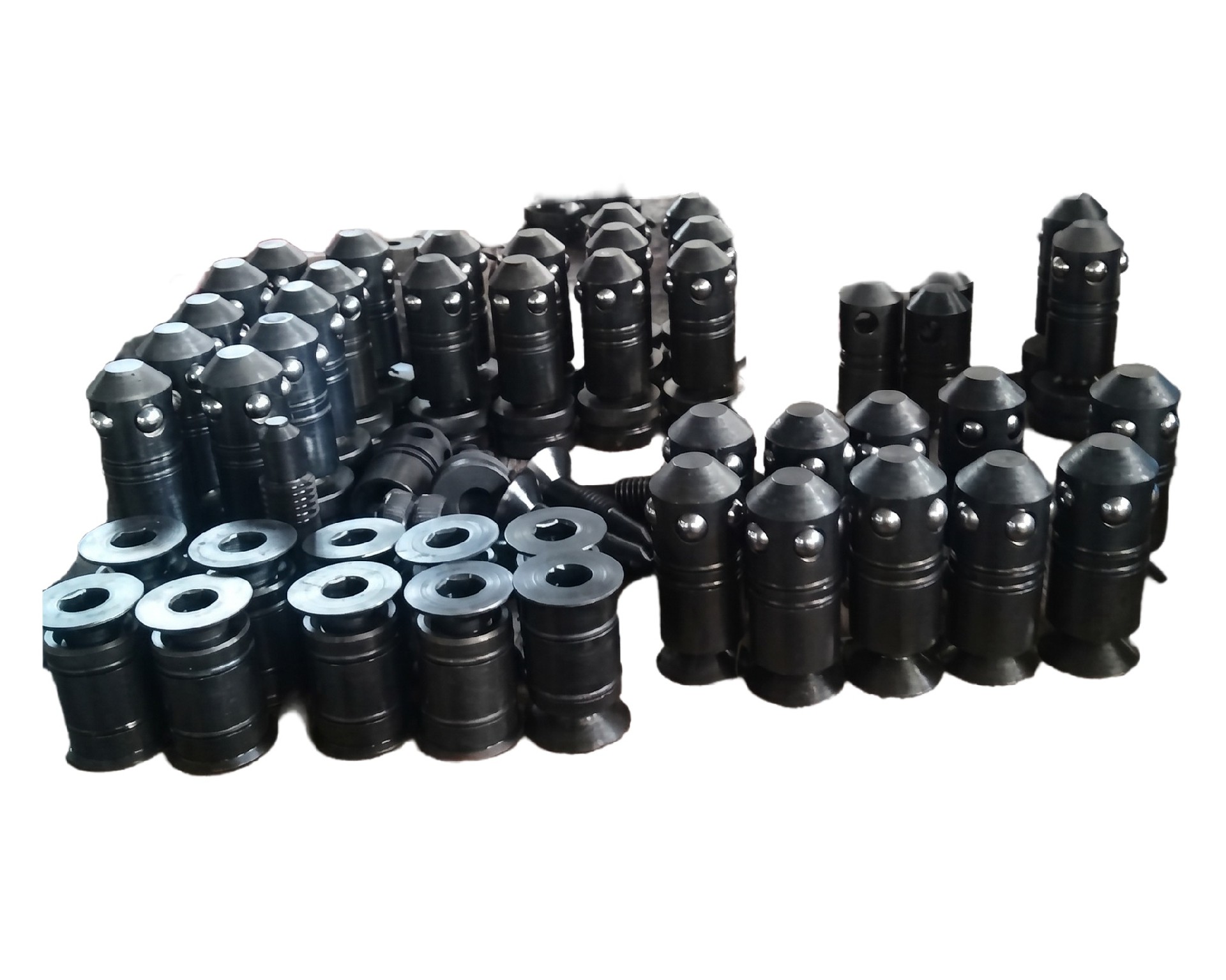

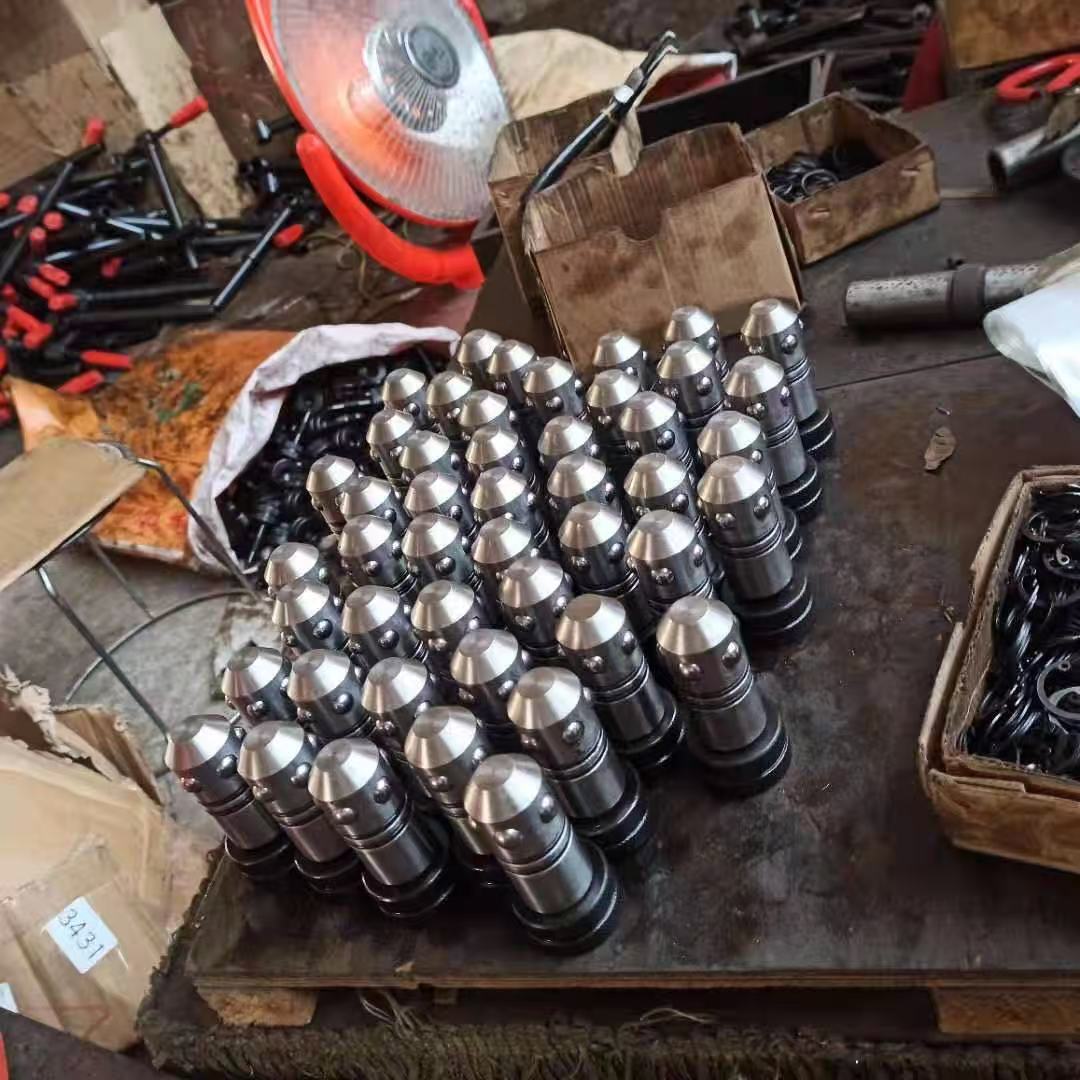

D28 System Fast Clamping Bolts (For Heavy-Duty Applications)

Compatible with all 28mm boreholes and 100x100mm grid systems. Designed for maximum payload safety and massive clamping pressure.

SerialNumber	Type	Pic	Length (mm)	Features
KC-LP-2850/75	Fast Clamping Bolt		50/75
KC-LP-2850/75-C	Connecting Bolt		50/75	Fixed Long-term Connection

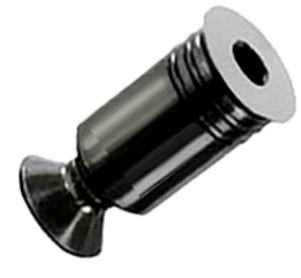

KC-LP-2850/75-CSQ	Countersunk Bolt		50/75	Countersunk Bolt Head

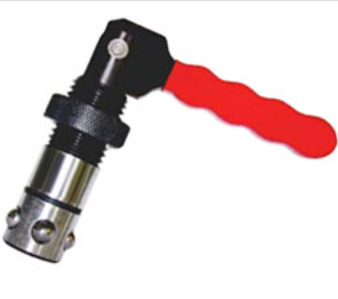

KC-LP-2850-H	Fast Clamping Bolt with handle		50	Quick Clamping Without Additional Tools

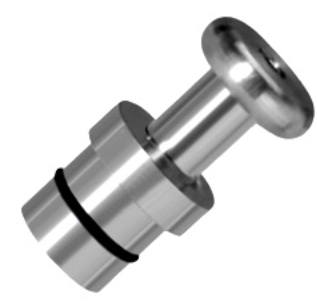

KC-LP-2825/50-M	Magnetic Clamping Bolt		25/50

D16 System Fast Clamping Bolts (For Precision & Tube Welding)

Compatible with all 16mm boreholes and 50x50mm grid systems. Ideal for lightweight frames, motorcycle chassis, and intricate sheet metal setups.

SerialNumber	Type	Pic	Length (mm)	Features
KC-LP-1624/36	Fast Clamping Bolt		24/36
KC-LP-1624/36-C	Connecting Bolt		24/36	Fixed Long-term Connection
KC-LP-1624/36-CSQ	Countersunk Bolt		24/36	Countersunk Bolt Head
KC-LP-1624/36-M	Magnetic Clamping Bolt		24/36

Pro Tips: Maximizing the Lifespan of Your Clamping Bolts

• Insertion Check: Always ensure the bolt is fully seated into the chamfered hole before tightening to prevent shearing the internal ball bearings.

• Routine Maintenance: Welding environments are harsh. Use our specialized nylon cleaning brushes to clear slag from table holes before inserting bolts. Apply a light coat of anti-rust oil to the O-rings periodically.
